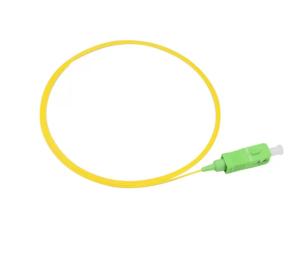

1.5m Single Mode Fiber Pigtails

Product Categories

Shenzhen Yutong Space Telecom Equipment Co., Ltd

Contact Now

1.5m Single Mode Fiber Pigtails

Place of Origin : china shenzhen

Brand Name : YT

Certification : ISO, SGS, ROHS

MOQ : 10 pcs

Price : Negotiation

Delivery Time : 3-7days

Payment Terms : XTransfer T/T, Western Union, PayPal

Supply Ability : 5000 pcs/Month

Product Name : Fiber Optic Pigtail

Fiber Type : G652D Or G657A

Jacket Material : PVC/LSZH

Connector Type : SC/APC-SC/APC Simplex Singlemode

Cable Diameter : 0.9/2.0/3.0mm

Cable Length : 1, 2, 3 Meter Or Customized

Application : FTTA FTTH BBU RRU RRH LTE & Base Station

Insertion Loss : ≤0.3dB

Return Loss : >60dB

Contact Now

Low Back Reflection Loss 1.5m Single Mode Fiber Pigtails

Description:

Pigtails are used forsplice applications when terminating outside plant cable. It’s consists ofa connector and a special lengthof fiber cable.Meets Telcordia GR-326 Core and ROHS requirements.All of our pigtails are factory inspected andtested, with available interferometer dataupon request.

Feature:

1. Low insertion loss,Low back reflectionloss

2. Flexible and easy to strip fiber buffering

3. Identifiable fiber buffer colors under all lighting conditions

4. Reduces installationtime

5. Avoids incorrect patching bypossible fiber flipping

6. Clean and Scratch-Free End Face

7. Proportional geometric test is applied to the normal production.

8. 100% interferometercheck is available under special requirement.

Specification:

Parameter	Singlemode	Multimode
Insertionloss	≤0.3dB,typical≤0.2dB	≤0.30dB
Returnloss	≥45dB(PC)	≥35dB
	≥50dB(UPC)
	≥60dB(APC)
Durability	≤0.2dBtypicalchange,1000matings
Repeatability	≤0.10dB
Fiber Type	Corning fiber 9um
Operationtemperature	-40~+75
Storagetemperature	-40~+85
Operatingwavelength	1310/1550nm

1.5m Single Mode Fiber Pigtails

Product Tags:

1.5m Single Mode Fiber Pigtails

G652D Single Mode Fiber Pigtails

3.0mm Single Mode Fiber Pigtails
